Cross Cut Adhesion Test Kit (Master Paint Plate) - SP3000

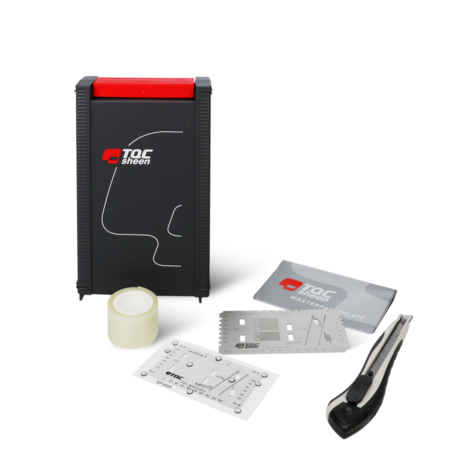

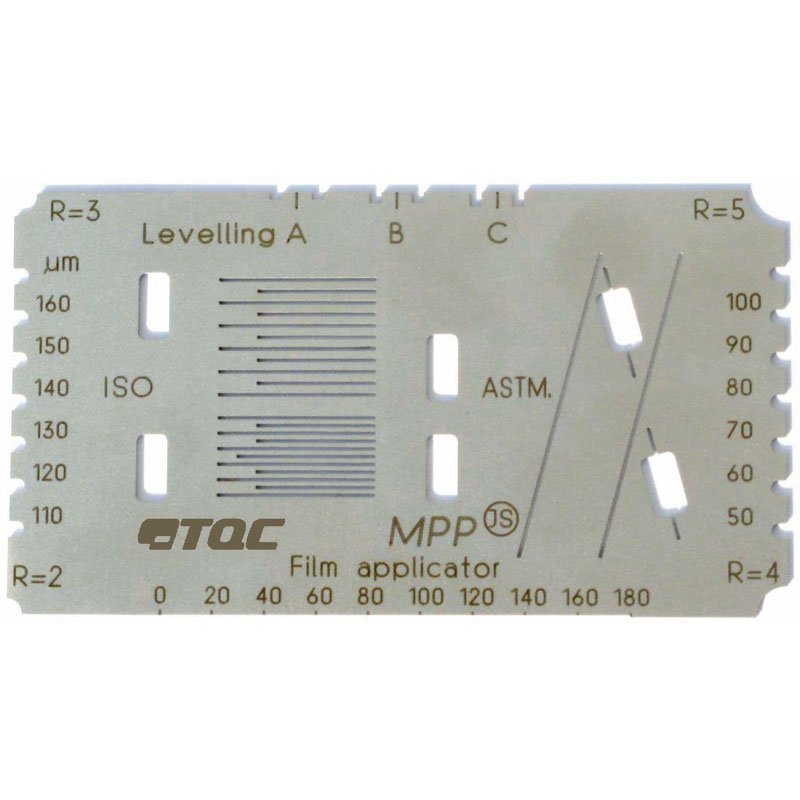

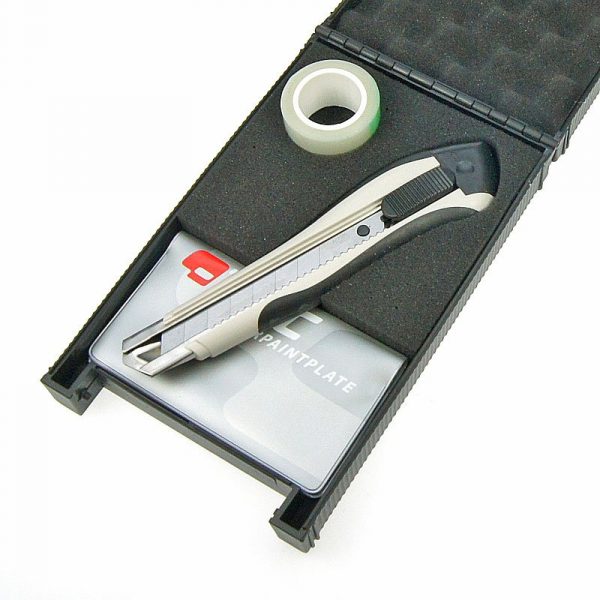

DocumentsDatasheet User ManualDescriptionThe TQC Cross Cut Adhesion Test KIT (Master Paint Plate) is a stainless steel measuring tool that features: a 1 mm, 1.5 mm, 2 mm and 3 mm cross cut adhesion test according NEN-EN-ISO 2409:2003 and ASTM D 3359 (X-cut) Andreas cross.Additional toolsWet film thickness gauge ranging from 50 microns up to 160 microns.On the corners there is an edge grind checker for correct roundness of edges.At the bottom is a wet film applicator ranging from 0 to 180 µm.The top edge provides a leveling test, an indication of the viscosity of the coating.Delivery includes cutting tool and tape.Tapes for the cross cut adhesion testTape For Adhesion Test according ISO 2409:2003 Tape For Adhesion Test according ISO 2409:1999 can be ordered separately as well.StandardsNEN-EN-ISO-2409, ASTM D3359ORDERING INFORMATIONSP3000TQC Cross Cut Adhesion Test Kit (Master Paint Plate) – Dimensions: 100 x 55 mm. – Cross cut test ASTM and ISO – Wet film thickness test (50-160µ, in steps of 10µ). – Levelling test (1, 1.5 and 2 mm) – Film applicator (0-180µ, in steps of 20µ). – Edge radius 2, 3, 4 and 5 mm SKU: SP3000 Categories: Adhesion, Adhesion (Wood), DFT Dry Film Thickness Gauges, ISO 2409, Paint Thickness Gauge, WFT Wet Film Thickness, ГОСТ 15140 Tag: TQC Sheen
