PosiTest AT Pull-off Adhesion Tester - Manual or Automatic

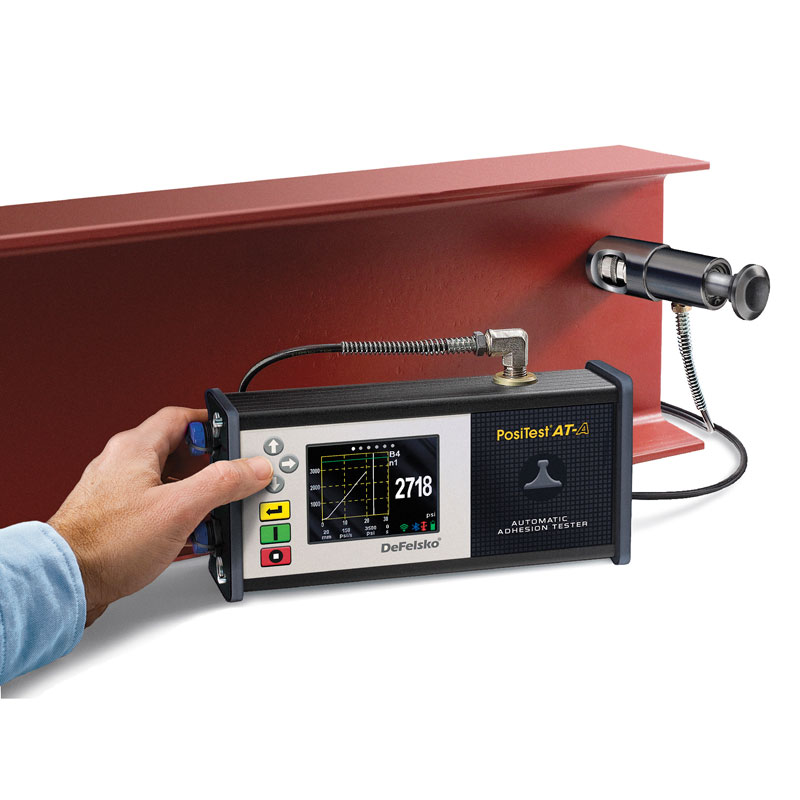

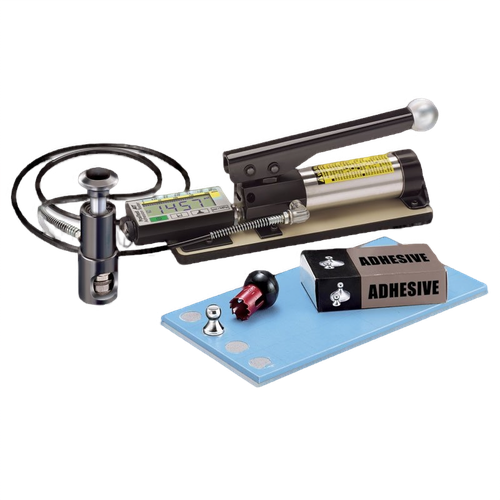

PosiTest AT Pull-off Adhesion Tester – Manual or AutomaticDocumentsDownload ManualVideosHow to Measure Adhesion Using the PosiTest® AT Adhesion Tester PosiTest® AT Self-Alignment Feature PosiTest AT-A – Automatic Adhesion Tester 5 Basic Steps to Perform a Pull-Off Adhesion Test with the PosiTest ATDescriptionsPosiTest AT-A AutomaticElectronically controlled hydraulic pump automatically applies smooth and continuous pull-off pressure. Greatly reduces user effort and the risk of influencing the pulling processUser adjustable pull rate, pull limit and hold timeInternal memory stores maximum pull-off pressure, rate of pull, test duration, dolly size, pass/fail, nature of fracture and user notes for 100,000 pulls in up to 1,000 batchesImpact and scratch resistant color touch screen with keypad for operation with or without glovesCompatible with PosiSoft® Desktop, PosiSoft.net and PosiTector® App (Apple iOS and Android)PosiTest AT-M ManualManual hydraulic pump designed to apply smooth and continuous pressure with a single strokePull Rate Indicator to manually monitor and adjust the rate of pullInternal memory stores maximum pull-off pressure, rate of pull, test duration and dolly size for up to 200 pullsCompatible with PosiSoft® Desktop for viewing, printing and storing measurement dataPosiTest AT-A AutomaticKey Features…Electronically controlled hydraulic pump automatically applies smooth and continuous pull-off pressure. Greatly reduces user effort and the risk of influencing the pulling processImpact and scratch resistant color touch screen with keypad for operation with or without glovesBuilt-in rechargeable battery performs over 200 tests per charge. Continue testing with AC power while the battery recharges.Environmentally sealed enclosure—weatherproof, dustproof and shockproof—meets or exceeds IP65Rubberized, shock absorbing grips provide a stable, skid-resistant footingSelf-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths. Maximum pull-off pressure by dolly size… – 10 mm: 14000 psi (96 MPa) – 14 mm: 7000 psi (50 MPa) – 20 mm: 3500 psi (24 MPa) – 50 mm: 560 psi (3.8 MPa)User selectable measurement units: psi (pounds per square inch), MPa (Megapascal), Nmm2 (Newtons per millimeter square) or Newton (force)User adjustable pull rate, pull limit and hold timeRotating display for horizontal and vertical useCalibrated and certified to ± 1% accuracy using a NIST traceable load cellAdhesion testers include everything needed for testing: Automatic Adhesion Tester, built-in rechargeable NiMH battery with charger, dollies, abrasive pad, cutting tool, glue with mixing sticks and palettes, cotton swabs, USB cable, PosiSoft® Software, instruction booklet, shoulder strap, Certificate of Calibration traceable to NIST, two-year warranty, and a sturdy, lightweight carrying case^* Optional 20mm/50mm/50 mm C1583/50 mm Tile Conversion Kits allow each model to be used with alternative dolly sizes. Custom 10 and 14 mm dollies are available for special applications (compatible with 20 mm stand off).Conforms to international standards including ASTM C1583/D4541/D7234/D7522, ISO 4624/16276-1, EN 1542/12004-2, AS/NZS 1580.408.5 and othersMemory and Reporting FeaturesInternal memory stores maximum pull-off pressure, rate of pull, test duration and dolly size for 100,000 pulls in up to 1,000 batchesRecord the results as pass/fail and the nature of fracture – cohesive, adhesive and glue failuresWirelessly connect to your smart device using our free PosiTector App (Apple iOS and Android)WiFi technology wirelessly communicates with PosiSoft.net, downloads software updates and allows access to stored measurement data using standard web browsers (see WiFi Features for full details)PosiSoft USB Drive—stored readings and graphs can be accessed via USB using universal PC/Mac web browsers or file explorers. No software requiredCompatible with PosiSoft® Desktop, PosiSoft.net and PosiTector® App (Apple iOS and Android) software solutionsPosiTector® App FeaturesAdd images and notes using the camera or keyboardCreate customized, professional PDF reportsShare, backup, synchronize and report measurement dataAuto-pairing Bluetooth (BLE) connectionSee the Help File to learn about how it works Touch Screen Display Use the touch screen to interact with menu options. Swipe horizontally to navigate between views or vertically to move between batch readings. Alternatively, the keypad can be used for navigation and selection. User adjustable dolly size, pull rate, pull limit and hold time. Batch summary provides an at-a-glance review of test results. View test parameters and reading results. Reading is recorded as pass or fail based on set test parameters. The pass/fail results can be revised. Notes can be added for each reading. Include a note for a batch (group) of readings. Record the nature of failure—cohesive, adhesive and glue failures.Recording the Nature of the FractureUpon completion of a pull-off test, the dolly and coated surface should be examined. In addition to pull-off force, many National and International standards such as ASTM D4541 and ISO 4624 require the nature of the fracture to be recorded.Cohesive fracture: fracture occurs within a coating layer (same coating on dolly face and coated surface).Adhesive fracture: fracture occurs at the interface between layers (coating on dolly face differs from surface).Glue failure: visible separation of the glue from itself, the coating or dolly (no coating visible on the dolly face).The cohesive and adhesive fracture visual analysis can be recorded using the PosiTest® AT-A’s keypad or touch screen display. Alternatively, the information can be reported using the PosiTector® App.Fractures are visually estimated and recorded as a percent of each. The two layer example below illustrates a cohesive fracture within coating layer 1 and layer 2 (visually estimated at 50% each). Recorded results are included in reports.The PosiTest® AT-A can record fracture information for up to five layers. For full details and examples see Visual Analysis and Recording of Test Results.  PosiTest® AT-MKey Features…Manual hydraulic pump designed to apply smooth and continuous pressure with a single strokeNEW High-contrast, easy to read color displayEnvironmentally sealed enclosure—weatherproof, dustproof and shockproof—meets or exceeds IP65Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfacesPull Rate Indicator to manually monitor and adjust the rate of pullInternal memory stores maximum pull-off pressure, pull rate, test duration and dolly size for up to 200 pullsNEW Field replaceable AAA alkaline batteries provide up to 16 hours of testing10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths – 10 mm: 10000 psi (70 MPa) – 14 mm: 6000 psi (40 MPa) – 20 mm: 3000 psi (20 MPa) – 50 mm: 480 psi (3.3 MPa) – 50×50 mm: 375 psi (2.585 MPa)User selectable measurement units: psi (pounds per square inch) or MPa (Megapascal)Every PosiTest® Adhesion Tester is calibrated and certified to ± 1% accuracy using a NIST traceable load cellCompatible with PosiSoft Desktop software for viewing, printing and storing measurement dataAdhesion testers include everything needed for testing: Manual Adhesion Tester, 3 AAA batteries, dollies, abrasive pad, cutting tool, glue with mixing sticks and palettes, cotton swabs, USB cable, PosiSoft® Software, instruction booklet, Certificate of Calibration traceable to NIST, two-year warranty, and a sturdy, lightweight carrying case* Optional 20mm/50mm/50 mm C1583/50 mm Tile Conversion Kits allow each model to be used with alternative dolly sizes. Custom 10 and 14 mm dollies are available for special applications (compatible with 20 mm stand off).Conforms to international standards including ASTM C1583/D4541/D7234/D7522, ISO 4624/16276-1, EN 1542/12004-2, AS/NZS 1580.408.5 and others SKU: N/A Category: Adhesion Tag: DeFelsko®
